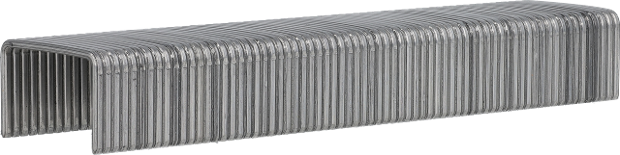

P-seeria klamber, 16 mm

Vajuta pildi suurendamiseks

Kirjeldus

P klamber, alumiinium

Näita rohkem Näita vähem

Rakendused

Katusepaneelid, Katusetööd, Laineklambrid, Isolatsiooniplaadid, Mööbel, Kapid, Karkassitööd, Laiendused

Näita rohkem Näita vähem

Andmed

Identifitseerimine

Tootekood: P10BMA
GTIN: 8715274005546

Tehnilised andmed

Kaldenurk: 0 °
Seose tüüp: Liimseotud
Traadi materjal: Aluminium
Suurus: 16

Kinnitusdetailide spetsifikatsioonid

Kate: Tavaline katteta
Rakenduskeskkond: Välistingimus
Otsa tüüp: Meisel
Otsa nurk: 70 °
Klambritüüp: Puiduklamber (heavy)
Klambri paksus: 1.4 mm
Klambri traadi paksus: 1.51 mm
Klambri selja laius: 26.3 mm
Klambri sise laius: 23.42 mm
Klambriseeria: P-klamber
Kinnitusvahendi kogus rivis/rullis: 69 - 71
Klambri jala pikkus: 16.0 mm

Mittetehnilised andmed

Pakendi kogus: 10000

Logistilised spetsifikatsioonid

Netokaal: 2.74 kg

Seotud tööriistad

PS15XP WC-klammerdaja

Artikli number

9T2001N

Klambri jala pikkus

16 - 38 mm

Kaldenurk

0 °

Seeria

XtremePro

Allalaadimised

P10BMA_et_CommercialProductSheet_1.5_1752209182961 PDF 1 Mb
