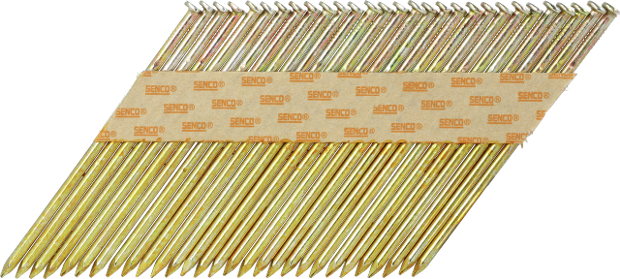

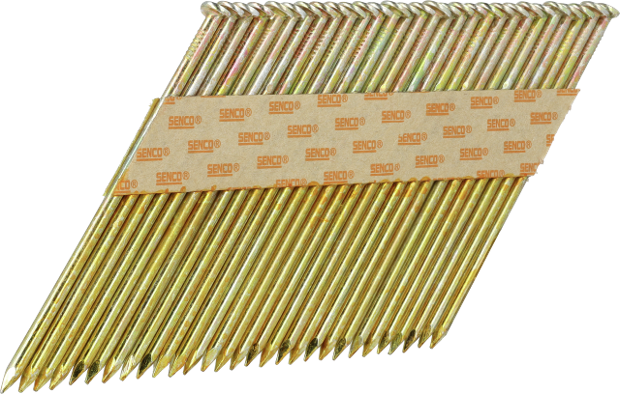

HC karkassinael, sile 3,1x90mm

Vajuta pildi suurendamiseks

Kirjeldus

3,1 mm nael, sile, 12 mikronit, Sencoted

Näita rohkem Näita vähem

Ühtlustatud standard EN 14592:2008+A1:2012

Andmed

Identifitseerimine

Tootekood: HC59AXB
GTIN: 8715274175324

Tehnilised andmed

Kaldenurk: 34 °
Seose tüüp: Paberseotud
Traadi materjal: Süsinikterasest standardne tõmbetugevus

Kinnitusdetailide spetsifikatsioonid

Viimistlus: Tsingitud 12mikronit
Kate: Sencokate
Rakenduskeskkond: Osaliselt välistingimus
Naela tüüp: CH rivinaelad
Naelapea tüüp: Poolkuupea
Nael: Sile nael
Otsa tüüp: Diamond
Otsa nurk: 40 °
Naela läbimõõt: 3.1 mm
Kinnitusvahendi kogus rivis/rullis: 59 - 61
Naela pikkus: 90.0 mm

CE spetsifikatsioonid

Iseloomulik pea läbitõmbe parameeter: 30.1 N/mm²
CE kinnitusvahendi tüüp: Ümmarguse ringlõikega sile naeil
DOP No: HC59AXB
Pea ristlõike pindala: 30.0 mm
Iseloomulik tootlusmoment: 2570.0 Nmm
Iseloomik tõmbetugevus: 633.0 N/mm²
Ühtlustatud standard: EN 14592:2008+A1:2012
Iseloomulik parameeter: 3.1 N/mm²

Mittetehnilised andmed

Pakendi kogus: 3000

Logistilised spetsifikatsioonid

Netokaal: 16.29 kg

Seotud tööriistad

Allalaadimised

HC59AXB_et_CommercialProductSheet_1.4_1748292336213 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 124 Kb
HC59AXB_et_DeclarationOfPerformanceDoP_1.0eu_1748292408797 PDF 61 Kb
