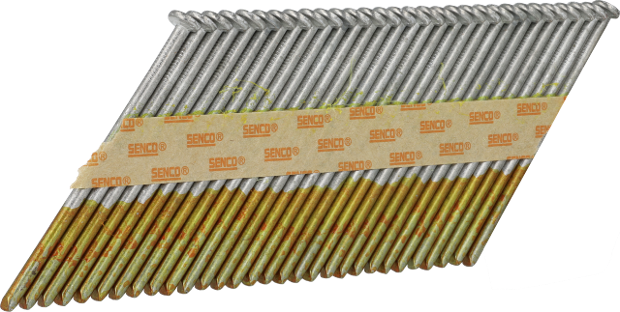

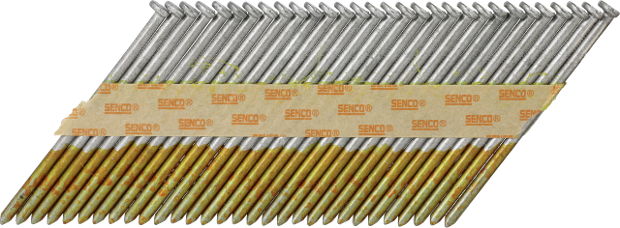

HC karkassinael, sile 3,1x90mm

Vajuta pildi suurendamiseks

Kirjeldus

3,1 mm nael, sile, kuumtsink, Sencoted

Näita rohkem Näita vähem

Rakendused

Karkassitööd, Katusepaneelid, Vahepõrandad, Terrassitööd, Tugisõrestik, Kaubaalused

Näita rohkem Näita vähem

Ühtlustatud standard EN 14592:2008+A1:2012

Andmed

Identifitseerimine

Tootekood: HC59ESBKR
GTIN: 8715274027623

Tehnilised andmed

Kaldenurk: 34 °
Seose tüüp: Paberseotud
Traadi materjal: Süsinikterasest standardne tõmbetugevus

Kinnitusdetailide spetsifikatsioonid

Viimistlus: Kuumtsink 3
Kate: Sencokate
Rakenduskeskkond: Välistingimus
Naela tüüp: CH rivinaelad
Naelapea tüüp: Poolkuupea
Nael: Sile nael
Otsa tüüp: Terav teritud
Otsa nurk: 40 °
Naela läbimõõt: 3.1 mm
Kinnitusvahendi kogus rivis/rullis: 29 - 31
Naela pikkus: 90.0 mm

CE spetsifikatsioonid

Iseloomulik pea läbitõmbe parameeter: 30.1 N/mm²
CE kinnitusvahendi tüüp: Ümmarguse ringlõikega sile naeil
DOP No: HC59ESBKR
Korrosioonitase mikronites: 55
Korrosiooniklass: 3
Viimistlus tüüp: Viimistlustüüp 3
Katte pikkus: 60.0 mm
Pea ristlõike pindala: 30.0 mm
Iseloomulik tootlusmoment: 2570.0 Nmm
Iseloomik tõmbetugevus: 633.0 N/mm²
Ühtlustatud standard: EN 14592:2008+A1:2012
Iseloomulik parameeter: 3.1 N/mm²

Mittetehnilised andmed

Pakendi kogus: 2000

Logistilised spetsifikatsioonid

Netokaal: 11.35 kg

Seotud tööriistad

Allalaadimised

HC59ESBKR_et_CommercialProductSheet_1.6_1752227532545 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 124 Kb
HC59ESBKR_et_DeclarationOfPerformanceDoP_1.0eu_1729043905034 PDF 61 Kb
