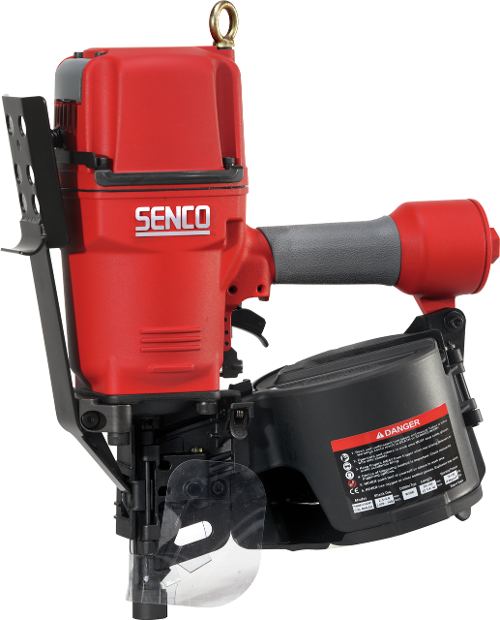

PAL100 Rullnaelapüstol alusetootjatele

PAL100 rullnaelapüstol aluse tootjatele

Vajuta pildi suurendamiseks

Kirjeldus

PAL100DHS on rullnaelapüstol, mis on spetsiaalselt loodud alusetootjatele. Suurepärane võimsus ja vasutpidavus. Võimalik lasta kuni 3,8x100 mm rullnaela terve päeva. Kaasas T-käepide tänu millele on mugavam ja kergem töötada.

Näita rohkem Näita vähem

Alumiiniumist korpus
Külgmised terasest kulumisplaadid
Mugav käepide

Rakendused

Kaubaalused, Pakend, Vahepõrandad, Karkassitööd, Katusepaneelid

Näita rohkem Näita vähem

Andmed

Identifitseerimine

Seeria: PalletPro
Tootekood: 5L0021N
GTIN: 0741474104886
Tüüp: PAL100

Tehnilised andmed

Kaldenurk: 16 °
Wounding type: Flat
Õlivaba: Ei
Töö temperatuur: -18 - 49 °C
Seose tüüp: Traatseotud
Töörežiim: Automaat
Magasini mahutavus: 300
Õhu sisselaskeava suurus: 3/8" emane
Õhutarve 60 lööki/minutis: 323.0 l/m
Töösurve: 4.8 - 8.3 bar
Müratase: 89.3 Lpa
Helivõimsuse tase: 102.3 Lwa
Vibratsioon: 5.35 m/s2

Kinnitusdetailide spetsifikatsioonid

Naela tüüp: Rullnaelad
Silenael: Sile nael
Silenael pikkus: 55 - 100 mm
Silenael läbimõõt: 2.5 - 3.8 mm
Kammnael: Kammnael
Kammnael pikkus: 55 - 75 mm
Kammnael läbimõõt: 2.5 - 2.5 mm
Kruvinael: Kruvinael
Kruvinael pikkus: 55 - 85 mm
Kruvinael läbimõõt: 2.5 - 3.1 mm
Samm min: 8.0
Samm max: 8.0
Max väline diameeter rullil: 121 mm

Mittetehnilised andmed

Garantii: 1 aasta
Mõõdud (PxLxK): 153 x 418 x 338 mm
Sisaldab kasti: Ei

Logistilised spetsifikatsioonid

Netokaal: 7.09 kg
